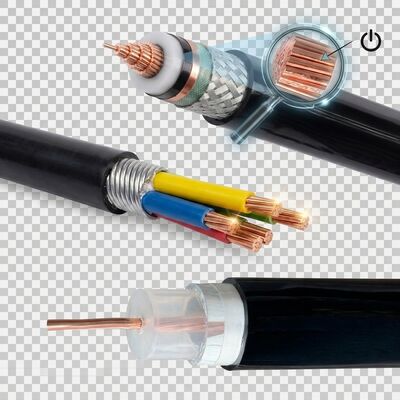

| Productnaam: | Middenspanning koperen tape scherm XLPE geïsoleerde kabel | Sollicitatie: | 12/20 kV onderstationvoedingen en ringhoofddistributie |
|---|---|---|---|
| Geleidermateriaal: | Klasse 2 gecomprimeerd gestrand koper, IEC 60228 | Nominale spanning: | 12/20 kV (Um 24 kV) |
| Kern en dwarsdoorsnede: | 3 x 120 mm2 | ISOLATIEsysteem: | XLPE, isolatieniveau van 133 procent |
| Scherm: | Geëxtrudeerde semi-geleidende laag plus koperen tape-scherm | Pantsertype: | Stalen tape-pantser onder de bovenmantel |
| Overschede: | Zwart PVC, grafietgecoat voor aardcontact | Ontwerpstandaard: | IEC 60502-2 |
| Markeren: | 3x120mm2 XLPE Insulated Cable,12/20kV CXLPE Insulated Cable,Copper Tape Screen XLPE Insulated Cable |
||
Product Overview Medium voltage feeders punish weak insulation design. This 12/20kV three core cable uses a triple extrusion process, where the semi conductive conductor screen, the XLPE insulation and the semi conductive insulation screen are applied in one pass inside a dry nitrogen curing tube. No dust, no moisture and no interface voids, which is exactly what partial discharge testing looks for at commissioning. The 133 percent insulation level gives this cable a thicker
