| Nominale Spanning: | 26/35 kV | Kleur isolatie: | natuur of op maat |
|---|---|---|---|
| Kernmerk: | Kleurstrook voor drie kernen | Kabelmerk: | Inktdrukken of embossing |
| Kleur buitenmantel: | Zwart of op maat | De lengte van de trommel: | 300m per trommel |
| bedrijf: | de groep shenghua | Merken: | Sh Kabel |
| Markeren: | 26/35kV aluminum XLPE power cable,seismic-resistant XLPE insulated cable,aluminum power cable for seismic zones |
||
| Attribute | Value |
|---|---|
| Rated Voltage | 26/35kV |
| Insulation Color | Nature or customized |
| Core Mark | Color Strip for three core |
| Cable Mark | Ink printing or Embossing |
| Outer Sheath Color | Black or customized |
| Drum Length | 300m per Drum |
| Corporation | Shenghua Group |
| Brand | SH Cable |

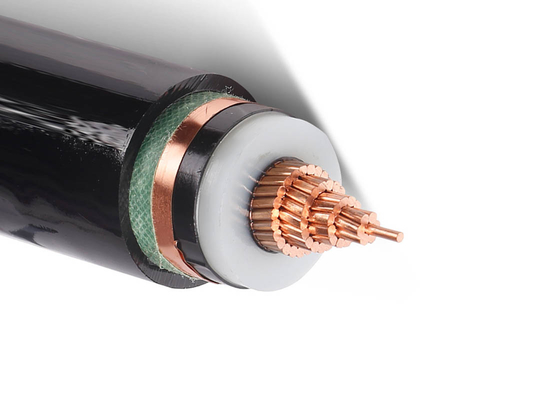

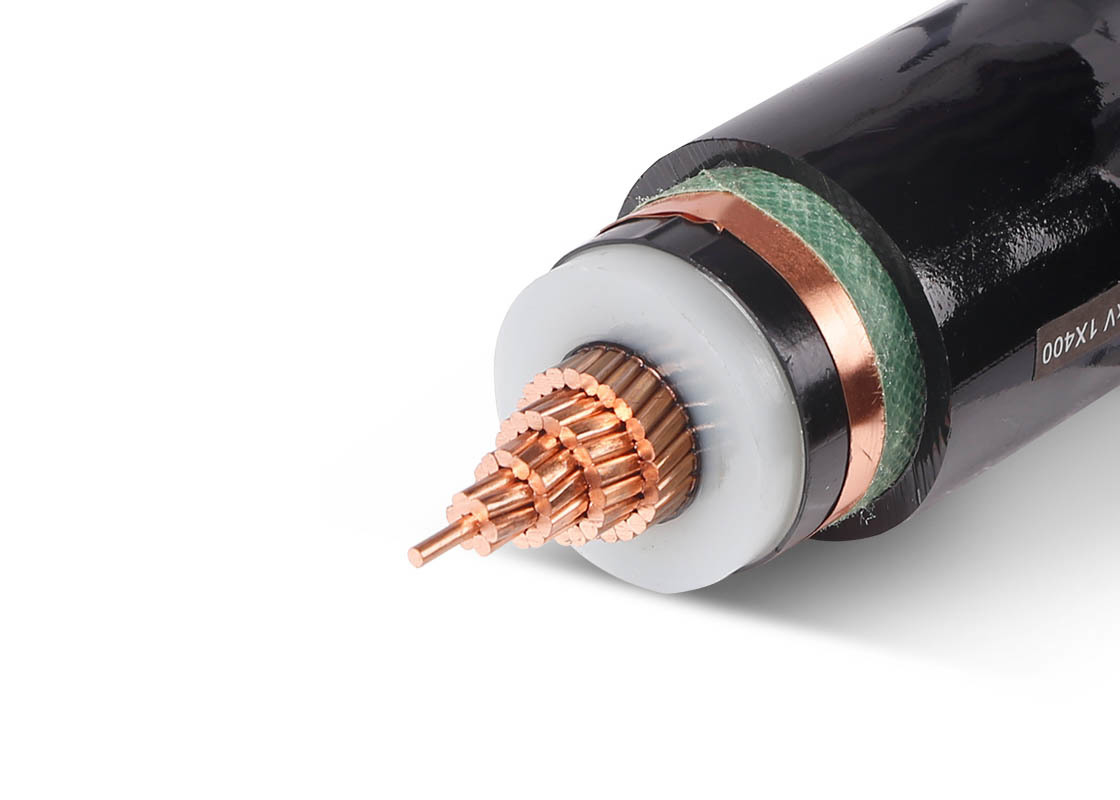

Medium Voltage 26/35kV AL/XLPE/CTS/PVC with Stranded Conductor Rigid
| Threat Scenario | Shenghua Solution | Certified Performance |
|---|---|---|
| Seismic Cable Heave | Min. bending radius 12× OD (armored multi-core) | Absorbs 12G vibrations (deployed in Japanese bullet train tunnels) |
| Coastal Salt Corrosion | Hermetic XLPE seals + salt-neutralizing sheath | 0.164Ω/km resistance (3×185mm²); 90°C operation in 95% humidity |
| Mining Rockfall | Steel-tape armor (YJV32) + impact-resistant filler | Survives 3-ton impacts; maintenance costs ↓45% in Zambia Copperbelt |
| Arctic Grid Freeze | Arctic-grade FR-PVC sheath (-40°C flexibility) | Passes IEC 62930 cold bend test at -40°C |
| Component | Specification |
|---|---|
| Conductor | Aluminum Conductor as per IEC 60228, Class 2 Circular or Shaped conductor Flexible conductor (class 5) optional |
| Insulation | XLPE (Cross-Linked Polyethylene) rated at 90°C, many color optional |
| Metallic Screen | Copper tape or copper wires braiding optional |
| Sheath | PVC or FR-PVC type ST2 to IEC 60502, black or red or customization |
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. | Approx. Weight | Max. D.C Resistance of Conductor (20°C) | Testing Voltage A.C | Current Rating In air (A) | Current Rating In soil(A) |
|---|---|---|---|---|---|---|---|---|---|
| 1 × 50 | 7/3.07 | 10.5 | 2.2 | 39.0 | 1449 | 0.641 | 91 | 170 | 165 |
| 1 × 70 | 19/2.20 | 10.5 | 2.4 | 41.0 | 1604 | 0.443 | 91 | 210 | 200 |
| 1 × 95 | 19/2.56 | 10.5 | 2.4 | 42.0 | 1767 | 0.320 | 91 | 255 | 240 |
| 1 × 120 | 19/2.86 | 10.5 | 2.4 | 44.0 | 1923 | 0.253 | 91 | 290 | 270 |
| 1 × 150 | 19/3.20 | 10.5 | 2.5 | 45.0 | 2103 | 0.206 | 91 | 330 | 305 |
| 1 × 185 | 37/2.52 | 10.5 | 2.5 | 47.0 | 2282 | 0.164 | 91 | 380 | 345 |
| 1 × 240 | 37/2.56 | 10.5 | 2.6 | 49.0 | 2584 | 0.125 | 91 | 435 | 400 |
| 1 × 300 | 61/2.56 | 10.5 | 2.7 | 51.0 | 2891 | 0.100 | 91 | 510 | 455 |
| 1 × 400 | 61/2.92 | 10.5 | 2.8 | 55.0 | 3325 | 0.0778 | 91 | 595 | 525 |
| 1 × 500 | 61/3.23 | 10.5 | 2.9 | 58.0 | 4076 | 0.0605 | 91 | 690 | 600 |
| 1 × 630 | 61/3.65 | 10.5 | 3 | 62.0 | 4305 | 0.0469 | 91 | 800 | 685 |
| 3 × 50 | 7/3.07 | 10.5 | 3.7 | 81.0 | 5778 | 0.641 | 91 | 145 | 170 |
| 3 × 70 | 19/2.20 | 10.5 | 3.8 | 84.0 | 6232 | 0.443 | 91 | 190 | 190 |
| 3 × 95 | 19/2.56 | 10.5 | 3.9 | 88.0 | 6824 | 0.320 | 91 | 215 | 230 |
| 3 × 120 | 19/2.86 | 10.5 | 4.0 | 91.0 | 7406 | 0.253 | 91 | 245 | 255 |
| 3 × 150 | 19/3.20 | 10.5 | 4.1 | 95.0 | 8165 | 0.206 | 91 | 280 | 295 |
| 3 × 185 | 37/2.52 | 10.5 | 4.2 | 98.0 | 8904 | 0.164 | 91 | 310 | 330 |
| 3 × 240 | 37/2.56 | 10.5 | 4.4 | 103.0 | 10270 | 0.125 | 91 | 365 | 380 |
| 3 × 300 | 61/2.56 | 10.5 | 4.5 | 108.0 | 11786 | 0.100 | 91 | 430 | 435 |
| 3 × 400 | 61/2.92 | 10.5 | 4.8 | 116.0 | 19346 | 0.0778 | 91 | 485 | 500 |
We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
