Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| Insualtion: | PVC | Schil: | PVC |
|---|---|---|---|
| Materiaal: | met een gewicht van niet meer dan 10 kg | Type geleider: | Klasse 1 of klasse 2 |
| Boort Nr uit.: | 2 tot 61 | Afmeting: | 0.75mm2 aan 10mm2 |
| Vorm van de geleider: | Rond | Kleur: | Zwart of grijs |
| bedrijf: | de groep shenghua | Merken: | Sh Kabel |
| Markeren: | Unarmoured PVC Control Cables,Cable Trench Control Cables,Non-Screened Control Cables |
||

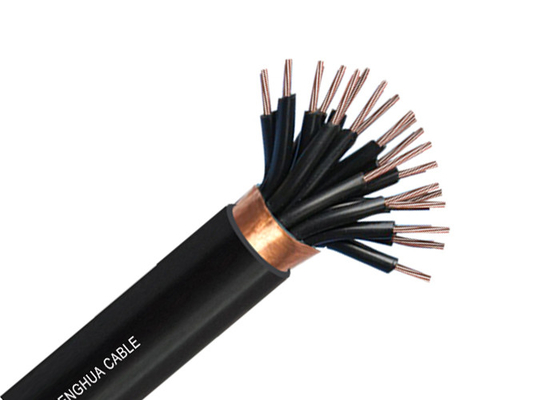

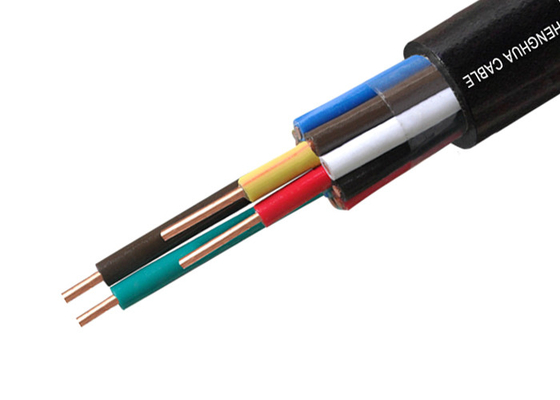

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench
In industrial settings where electromagnetic interference, mechanical stress, and chemical exposure threaten electrical integrity, substandard cables cause 42% of unplanned downtime—triggering costly production halts and safety risks. Shanghai Shenghua Power Group Cable solves these challenges with its Unarmoured PVC Control Cables, engineered for simplified installation, chemical resilience, and IEC/GB-certified safety in cable trenches, indoor panels, and pipelines at 450/750V.
Chemical & Abrasion Resistance:
Thermal Stability & Safety:
Energy Efficiency & Compliance:
| Core Configuration | Cross-Section (mm²) | Insulation Thickness (mm) | Max. DC Resistance (Ω/km) | Weight (kg/km) |
|---|---|---|---|---|
| 2-Core | 0.75–6.0 | 0.6–0.8 | 24.5 (0.75mm²) | 59–220 |
| 3-Core | 0.75–6.0 | 0.6–0.8 | 24.5 (0.75mm²) | 71–310 |
Standards: IEC 60227, IEC 60228, GB9330, BS/DIN/ICEA
Temperature Range: -0°C to 70°C (operational), 160°C (short-circuit)
Bending Radius: 6× cable diameter
Certified Manufacturing Excellence:
Rapid Global Delivery:
Infrastructure Legacy:
Construction:
Conductor: Solid or Stranded Copper Conductor
Insualtion: PVC
Sheath: PVC
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.
Specifications:
| Cross-Sectional Area mm2 |
Thickness of Insulation |
Thickness of Sheath |
Overall Diameter | Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | ||||||
| 2x0.75 | 0.6 | 1.2 | 6.7 | 8.1 | 0.012 | 24.5 | 59 |
| 2x1 | 0.6 | 1.2 | 7 | 8.5 | 0.011 | 18.1 | 67 |
| 2x1.5 | 0.7 | 1.2 | 7.9 | 9.5 | 0.011 | 12.1 | 86 |
| 2x2.5 | 0.8 | 1.2 | 9 | 10.9 | 0.01 | 7.41 | 120 |
| 2x4 | 0.8 | 1.2 | 9.9 | 11.9 | 0.0085 | 4.61 | 167 |
| 2x6 | 0.8 | 1.2 | 10.8 | 13.1 | 0.007 | 3.08 | 220 |
| 3x0.75 | 0.6 | 1.2 | 7.1 | 8.5 | 0.012 | 24.5 | 71 |
| 3x1 | 0.6 | 1.2 | 7.4 | 8.9 | 0.011 | 18.1 | 82 |
| 3x1.5 | 0.7 | 1.2 | 8.3 | 10 | 0.011 | 12.1 | 108 |
| 3x2.5 | 0.8 | 1.2 | 9.5 | 11.5 | 0.01 | 7.41 | 154 |
| 3x4 | 0.8 | 1.2 | 10.5 | 12.4 | 0.0085 | 4.61 | 210 |
| 3x6 | 0.8 | 1.2 | 11.5 | 13.9 | 0.007 | 3.08 | 310 |
FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
