Shenghua Group Cable Customized Color Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Environmental Protection

CHINA Shenghua Group Cable Customized Color Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Environmental Protection leverancier
Shenghua Group Cable Customized Color Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Environmental Protection leverancier Shenghua Group Cable Customized Color Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Environmental Protection leverancier

Grote Afbeelding :  Shenghua Group Cable Customized Color Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Environmental Protection

Productdetails:

Plaats van herkomst: Shanghai, China
Merknaam: SHANCABLE
Certificering: PCCC/ISOCE/KEMA
Modelnummer: WDZA-YJY

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 200 meter.
Prijs: USD 0.5-50/meter
Verpakking Details: Fumigatie Houten trommel
Levertijd: Volgens schema.
Levering vermogen: 500 km per maand
Contact
Gedetailleerde productomschrijving
Nominale spanning: 0.6/1kv Kernen: 1,2,3,4,5
Standaard: IEC60502-1,IEC61034,IEC60754 Functie: milieubescherming
Afmeting: 1.5-600mm² Kleur: Aangepast
Pakket: Vrij bedrijf: de groep shenghua
Merk: Sh Kabel
Markeren:

Low Smoke Zero Halogen Cable

,

Customized Color Zero Halogen Cable

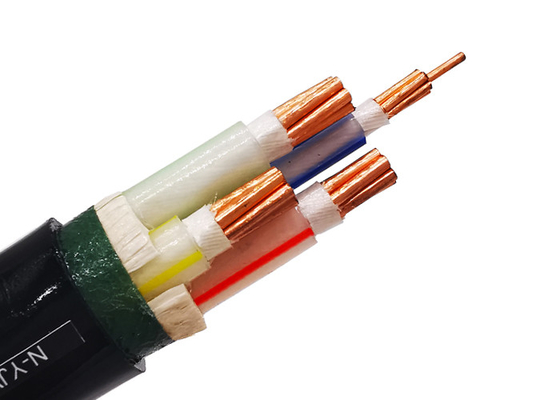

Customized Color Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Environmental Protection


Shanghai Shenghua Power Group: Redefining Safety with Customizable LSZH Cables for Critical Infrastructure​​

​​Shanghai Shenghua Cable (Group) Co., Ltd.​​—China’s ​​#2 cable manufacturer​​ with ​​110,000 km annual output​​ and ​​21 ISO-certified factories​​—sets a global benchmark in fire safety with its ​​Low Smoke Zero Halogen (LSZH) Power Cables​​. Engineered for high-risk environments like subways, hospitals, and data centers, these IEC 60502-certified solutions combine zero-halogen innovation, extreme thermal resilience, and customizable aesthetics to protect lives and assets worldwide.

​​1. Advanced Engineering for Life-Saving Performance​​

  • ​​Zero-Halogen Core Technology​​:
    • ​​LSZH Insulation & Sheath​​: Eliminates toxic fumes (e.g., HCl, dioxins) during combustion, reducing smoke density to ​​<20% of traditional PVC cables​​ and ensuring ​​≥60% light transmittance​​ for clear evacuation paths

    • ​​Corrosion Prevention​​: PH value of combustion gases maintains ​​≥4.3​​ (weak acidity), protecting sensitive equipment in control panels

  • ​​Thermal & Electrical Excellence​​:
    • ​​90°C Continuous Operation​​ + ​​250°C Short-Circuit Survival (5s)​​: Surpasses standard PVC (70°C) in high-heat zones like power plants

    • ​​Ultra-Low Resistance​​: Class 1/2 annealed copper conductors minimize energy loss (e.g., ​​0.0470 Ω/km​​ for 400mm²), cutting operational costs by 30%

  • ​​Customizable Armor & Colors​​:
    • ​​Steel Tape/Wire Armor (WDZA-YJY23/33)​​: Protects against mechanical stress in underground installations.
    • ​​12+ Custom Colors​​: Meets BS 7870 standards for phase identification (e.g., Brown/Blue/Grey for 3-core)

​​2. Certified Global Compliance & Safety​​

  • ​​Standards​​: IEC 60502, IEC 60227, GB/T 12706, with optional BS/DIN/ICEA certification.
  • ​​Fire Safety Certifications​​:
    • ​​IEC 60332-1​​ (Flame Spread), ​​IEC 61034​​ (Low Smoke), ​​IEC 60754​​ (Zero Halogen)

    • ​​CE/KEMA Marks​​: Ensures EU/UKCA market access.

​​3. Technical Superiority Across Applications​​

​​Key Specifications (WDZA-YJY Series)​​:

​​Conductor (mm²)​​ ​​Max. DC Resistance (Ω/km)​​ ​​Diameter (mm)​​ ​​Current Rating (Air)​​
1×1.5 12.1 7.7 22A
1×240 0.0754 27.7 535A
5×150 0.124 (per core) 58.5 325A

​​Applications​​:

  • ​​Public Transportation (Subways/Airports)​​: LSZH sheath reduces smoke toxicity in evacuation-critical sites, aligning with EU CPR regulations

  • ​​Data Centers​​: Halogen-free materials prevent server corrosion during fires (critical for 5×95mm² server farm wiring)

  • ​​Renewable Energy​​: 90°C thermal stability supports solar/wind farm connections (WDZA-YJLY aluminum variants cut project costs by 25%)

​​4. Why Global Partners Trust Shenghua?​​

  • ​​Manufacturing Prowess​​:
    • ​​80+ Cable Types​​: Including superconducting 35kV lines and LSZH variants from 1.5–800mm².
    • ​​Zero-Defect Policy​​: 100% IACS copper purity and XLPE insulation tested per IEC 60502

  • ​​Supply Chain Agility​​:
    • ​​10-Day Global Delivery​​: Moisture-sealed reels with BOPP tape + hygroscopic caps.
  • ​​Sustainability Commitment​​:
    • ​​95% Recyclable Copper​​: Reduces landfill waste vs. aluminum alternatives

    • ​​RoHS Compliance​​: Halogen-free materials align with circular economy goals

Conductor: Class 1/2 annealed bare copper solid or strands. This wires are formed into final conductor in the stranding machines under strict quality surveillance.


Insulation: Cross linked polyethylene compound or PVC is insulated over the conductors by extrusion process.The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.


XLPE:Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per BS
1 Red or Black Brown or Blue
2 Red & Black Brown, Blue
3 Red, Yellow Blue Brown, Black, Grey
4 Red, Yellow, Blue & Black Blue, Brown, Black, Grey
5 Red, Yellow, Blue, Black, Y/G Blue, Brown, Black, Grey & Y/G


Armour : When armouring is required, the armour consists of single layer of galvanised steel wires/galvanized steel tapes.
The armour is applied helically as per standards.
Single core cables are armoured with Aluminium Wires or Copper wires based on requirement.


Outer sheath : Standard cables are manufactured with Extruded black PVC. Outersheath is embossed or printed with the information required by relevant standards.
Special FR, FRLS, FRRT, LSF, MDPE compounds are used for outersheathing of cables, to suit customer’s specific requirements.

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 61034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%

Type Description Cores Nominal Cross Section

WDZA-YJY

WDZB-YJY

WDZC-YJY

 Copper conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZA-YJY23 WDZB-YJY23 WDZC-YJY23 Copper conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZA-YJY33 WDZB-YJY33 WDZC-YJY33 Copper conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZA-YJLY WDZB-YJLY WDZC-YJLY Aluminum conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZA-YJLY23 WDZB-YJLY23 WDZC-YJLY23 Aluminum conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZA-YJLY33 WDZB-YJLY33 WDZC-YJY33 Aluminum conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2

1.5~800mm2


Nom. Cross-section of conductor Insulation Thickness Sheath Approx. Approx Max. D.C. Resistance of Conductor (20°C) Test Voltage Current Rating
mm2 mm Thickness O.D. Weight Ω/km A.C


mm mm kg/km
kV/5min In air(A) In soil(A)
1×1.5 0.7 1.8 7.7 81 12.1 3.5 22 33
1×2.5 0.7 1.8 8.1 95 7.41 3.5 31 43
1×4 0.7 1.8 8.5 114 4.61 3.5 41 56
1×6 0.7 1.8 9.1 137 3.08 3.5 52 70
1×10 0.7 1.8 10.3 189 1.83 3.5 71 94
1×16 0.7 1.8 11.4 254 1.15 3.5 92 120
1×25 0.9 1.8 12.9 359 0.727 3.5 120 155
1×35 0.9 1.8 13.9 460 0.524 3.5 150 185
1×50 1 1.8 15.5 606 0.387 3.5 180 220
1×70 1.1 1.8 17.5 808 0.268 3.5 230 270
1×95 1.1 1.8 19.3 1047 0.193 3.5 285 320
1×120 1.2 1.8 20.9 1289 0.153 3.5 335 365
1×150 1.4 1.8 22.9 1582 0.124 3.5 385 410
1×185 1.6 1.8 25.2 1927 0.0991 3.5 450 465
1×240 1.7 1.8 27.7 2458 0.0754 3.5 535 540
1×300 1.8 1.9 31.2 3096 0.0601 3.5 620 610
1×400 2 2 34.8 4064 0.047 3.5 720 695
2×1.5 0.7 1.8 12.7 172 12.1 3.5 20 27
2×2.5 0.7 1.8 13.5 204 7.41 3.5 26 35
2×4 0.7 1.8 14.6 247 4.61 3.5 34 45
2×6 0.7 1.8 15.5 300 3.08 3.5 43 57
2×10 0.7 1.8 18.1 418 1.83 3.5 60 77
2×16 0.7 1.8 20.2 563 1.15 3.5 83 105
2×25 0.9 1.8 23.2 800 0.727 3.5 105 125
2×35 0.9 1.8 25.2 1026 0.524 3.5 125 155
2×50 1 1.8 28.4 1338 0.387 3.5 160 185
2×70 1.1 1.9 32.6 1804 0.268 3.5 200 225
2×95 1.1 2 36.4 2343 0.193 3.5 245 270
2×120 1.2 2.1 39.8 2891 0.153 3.5 285 310
2×150 1.4 2.3 44.2 3639 0.124 3.5 325 345
2×185 1.6 2.4 49 4458 0.0991 3.5 375 390
2×240 1.7 2.6 54.4 5696 0.0754 3.5 440 450
3×1.5 0.7 1.8 13.4 203 12.1 3.5 20 27
3×2.5 0.7 1.8 14.2 246 7.41 3.5 26 35
3×4 0.7 1.8 15.2 304 4.61 3.5 34 45
3×6 0.7 1.8 16.4 376 3.08 3.5 43 57
3×10 0.7 1.8 19.1 534 1.83 3.5 60 77
3×16 0.7 1.8 21.4 737 1.15 3.5 83 105
3×25 0.9 1.8 24.7 1063 0.727 3.5 105 125
3×35 0.9 1.8 26.9 1380 0.524 3.5 125 155
3×50 1 1.9 30.5 1837 0.387 3.5 160 185
3×70 1.1 2 35 2490 0.268 3.5 200 225
3×95 1.1 2.1 39.1 3325 0.193 3.5 245 270
3×120 1.2 2.3 42.8 4120 0.153 3.5 285 310
3×150 1.4 2.4 47.5 5092 0.124 3.5 325 345
3×185 1.6 2.6 52.9 6245 0.0991 3.5 375 390
3×240 1.7 2.7 58.5 7996 0.0754 3.5 440 450
4×1.5 0.7 1.8 14.4 241 12.1 3.5 20 27
4×2.5 0.7 1.8 15.4 295 7.41 3.5 26 35
4×4 0.7 1.8 16.5 369 4.61 3.5 34 45
4×6 0.7 1.8 17.8 463 3.08 3.5 43 57
4×10 0.7 1.8 20.9 667 1.83 3.5 60 77
4×16 0.7 1.8 23.4 930 1.15 3.5 83 105
4×25 0.9 1.8 27.1 1351 0.727 3.5 105 125
4×35 0.9 1.8 29.5 1772 0.524 3.5 125 155
4×50 1 1.9 38.4 2380 0.387 3.5 160 185
4×70 1.1 2 43.2 3302 0.268 3.5 200 225
4×95 1.1 2.2 47.3 4330 0.193 3.5 245 270
4×120 1.2 2.3 52.5 5374 0.153 3.5 285 310
4×150 1.4 2.5 58.3 6655 0.124 3.5 325 345
4×185 1.6 2.7 64.7 8246 0.0991 3.5 375 390
4×240 1.7 2.9 73.1 10569 0.0754 3.5 440 450
5×1.5 0.7 1.8 13.6 284 12.1 3.5 20 27
5×2.5 0.7 1.8 16.6 349 7.41 3.5 26 35
5×4 0.7 1.8 17.9 441 4.61 3.5 34 45
5×6 0.7 1.8 19.3 558 3.08 3.5 43 57
5×10 0.7 1.8 22.8 809 1.83 3.5 60 77
5×16 0.7 1.8 25.6 1135 1.15 3.5 83 105
5×25 0.9 1.8 29.7 1664 0.727 3.5 105 125
5×35 0.9 1.9 32.6 2194 0.524 3.5 125 155
5×50 1 2 37.3 3013 0.387 3.5 160 185
5×70 1.1 2.1 42.9 4101 0.268 3.5 200 225
5×95 1.1 2.2 48.2 5382 0.193 3.5 245 270
5×120 1.2 2.4 52.7 6685 0.153 3.5 285 310
5×150 1.4 2.5 58.5 8363 0.124 3.5 325 345
5×185 1.6 2.7 65.1 10268 0.0991 3.5 375 390
5×240 1.7 3.1 72.3 13167 0.0754 3.5 440 450
3×2.5+1×1.5 0.7 1.8 15.2 254 7.41 3.5 26 35
3×4+1×2.5 0.7 1.8 16.3 352 4.61 3.5 34 45
3×6+1×4 0.7 1.8 17.5 440 3.08 3.5 43 57
3×10+1×6 0.7 1.8 20.1 616 1.83 3.5 60 77
3×16+1×10 0.7 1.8 22.8 865 1.15 3.5 83 105
3×25+1×16 0.7 1.8 26.2 1248 0.727 3.5 105 125
3×35+1×16 0.9 1.8 28 1557 0.524 3.5 125 155
3×50+1×25 1 1.9 32 2120 0.387 3.5 160 185
3×70+1×35 1.1 2.1 36.7 2863 0.268 3.5 200 225
3×95+1×50 1.1 2.2 41.1 3854 0.193 3.5 245 270
3×120+1×70 1.2 2.4 45.6 4857 0.153 3.5 285 310
3×150+1×70 1.4 2.5 49.4 5808 0.124 3.5 325 345
3×185+1×95 1.6 2.7 55.1 7271 0.0991 3.5 375 390
3×240+1×120 1.7 2.9 60 9269 0.0754 3.5 440 450
3×2.5+2×1.5 0.7 1.8 18.8 299 7.41 3.5 26 35
3×4+2×2.5 0.7 1.8 20 405 4.61 3.5 34 45
3×6+2×4 0.7 1.8 21.5 513 3.08 3.5 43 57
3×10+2×6 0.7 1.8 24 708 1.83 3.5 60 77
3×16+2×10 0.7 1.8 27.1 1006 1.15
83 105
3×25+2×16 0.7 1.8 30.8 1448 0.727
105 125
3×35+2×16 0.9 1.9 32.6 1760 0.524
125 155
3×50+2×35 1 2.1 37.3 2427 0.387
160 185
3×70+2×35 1.1 2.2 42.1 3338 0.268
200 225
3×95+2×50 1.1 2.4 47.8 4426 0.193
245 270
3×120+2×70 1.2 2.5 52.6 5645 0.153
285 310
3×150+2×70 1.4 2.7 56.5 6587 0.124
325 345
3×185+2×95 1.6 2.9 62.9 8225 0.0991
375 390
3×240+2×120 1.7 3.1 69.3 10453 0.0754
440 450
4×2.5+1×1.5 0.7 1.8 16.5 313 7.41
26 35
4×4+1×2.5 0.7 1.8 17.7 424 4.61
34 45
4×6+1×4 0.7 1.8 19.1 535 3.08
43 57
4×10+1×6 0.7 1.8 22.1 760 1.83
60 77
4×16+1×10 0.7 1.8 25.1 1071 1.15
83 105
4×25+1×16 0.7 1.8 29 1556 0.727
105 125
4×35+1×16 0.9 1.9 31.4 1976 0.524
125 155
4×50+1×25 1 2.1 36 2689 0.387
160 185
4×70+1×35 1.1 2.2 41.1 3719 0.268
200 225
4×95+1×50 1.1 2.4 46.3 4903 0.193
245 270
4×120+1×70 1.2 2.5 51 6165 0.153
285 310
4×150+1×70 1.4 2.7 55.8 7431 0.124
325 345
4×185+1×95 1.6 2.9 62.1 9192 0.0991
375 390
4×240+1×120 1.7 3.1 68.8 11860 0.0754
440 450


About Shenghua:


The biggest cable Manufacturer in China

Listed as No.2 of TOP 10 Cable Manufacturers

3 branch factories listed as Top 10 Cable Factories in China

Originated in 1950 and found in 1997

21 branch factories around China

80--available types of cables

600--sales branches and offices around the world

5000--Employees

1332000 m2--Total spaces
1100000 km--Annual output of cables
10000000000 RMB--Annual sales amount

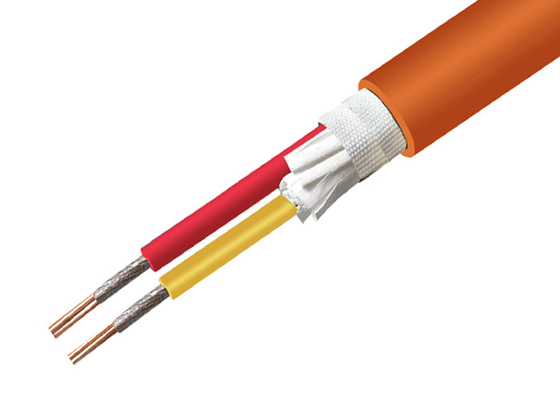

Shenghua Group Cable Customized Color Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Environmental Protection 0

Our Customers :


Shenghua Group Cable Customized Color Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Environmental Protection 1


Our Parters :

 Shenghua Group Cable Customized Color Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Environmental Protection 2






label:

de lage vrije kabel van het rookhalogeen,

lszh machtskabel,

Lage Rook Nul Halogeendraad

Contactgegevens
Shanghai Shenghua Cable (Group) Co., Ltd.

Contactpersoon: Mayling Zhao

Tel.: +86 15901866124

Direct Stuur uw aanvraag naar ons (0 / 3000)

Over ons
XLPE geïsoleerde stroomkabel
gepantserde elektrokabel
lage rook nul halogeenkabel
Contacteer ons
Mobiele site
Privacybeleid | CHINA Goed Kwaliteit XLPE geïsoleerde stroomkabel Leverancier. © 2016 - 2025 Shanghai Shenghua Cable (Group) Co., Ltd.. All Rights Reserved.
Privacybeleid | CHINA Goed Kwaliteit XLPE geïsoleerde stroomkabel Leverancier. © 2016 - 2025 Shanghai Shenghua Cable (Group) Co., Ltd.. All Rights Reserved.
