| Modelnaam: | PVC Geïsoleerde Kabel 5-aderig | Type geleider: | Aluminium |
|---|---|---|---|
| Grootte: | 1.5~800 m2 | kern nr.: | 4 |
| Isolatie kleur: | Elke kleur. | Schedekleur: | Zwart |
| bedrijf: | de groep shenghua | Merk: | Sh Kabel |
| Markeren: | PVC Insulated Aluminum Cable,1kV Unarmoured Aluminum Cable,Five Core Aluminum Cable |
||

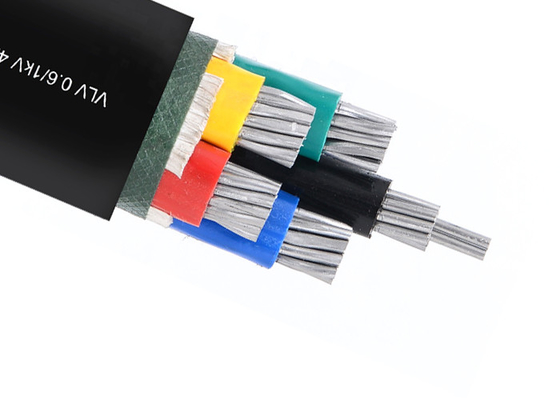

Five Core PVC Insulated & Sheathed 0.6/1kV Unarmoured Aluminum Conductor Cable
Shanghai Shenghua Power Group—ranked among China’s Top 500 manufacturers
—delivers cutting-edge electrical solutions with its Five Core 0.6/1kV Unarmoured Aluminum Conductor Cable. Designed for harsh environments like underground ducts, saline water, and industrial zones, this cable combines cost efficiency, durability, and eco-compliance to meet global energy demands.
| Conductor (mm²) | Max. Resistance (Ω/km) | Diameter (mm) | Test Voltage |
|---|---|---|---|
| 5×95 | 0.320 | 48.1 | 3.5kV/5min |
| 5×185 | 0.164 | 65.1 | 3.5kV/5min |
| 5×400 | 0.0778 | 87.0 | 3.5kV/5min |
Applications Used outside as energy utility and lighting cables, in cable ducts, under
ground, under normal and salty water if specially made.
Construction
| Conductor | Aluminum Conductor as per IEC 60228 |
| ≤6mm2 solid (class 1) | |
| ＞6mm2 stranded (class 2) | |
| ≥50mm2 shaped conductor optional | |
| Insulation | PVC(polyvinyl chloride) rated at 75℃ |
| Sheath | PVC(polyvinyl chloride) rated at 75℃ |
| Flame retardant | Avaliable as customization |
Technical data
| Rated voltage | 0.6/1kV Low Voltage |
| Maximum Conductor Temperature | Under normal (75℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions |
| Min. Ambient Temp | 0 ℃, after installation and only when cable is in a fixed position |
| Min. Bending Radius | 15 x cable O.D for multi core without armor |
Technical parameter:
| Cross section of conductor | Thickness of insulation | Thickness of Sheath | Approx.cable diameter | Max.resistance of conductor at 20 ℃ | Test Voltage(AC) |
| mm2 | mm | mm | mm | ohm/km | KV/5min |
| 5x2.5 | 0.8 | 1.8 | 13.6 | 12.1 | 3.5 |
| 5x4 | 1.0 | 1.8 | 16.1 | 7.41 | 3.5 |
| 5x6 | 1.0 | 1.8 | 17.7 | 4.61 | 3.5 |
| 5x10 | 1.0 | 1.8 | 21.0 | 3.02 | 3.5 |
| 5x16 | 1.0 | 1.8 | 23.8 | 1.91 | 3.5 |
| 5x25 | 1.2 | 1.8 | 28.7 | 1.20 | 3.5 |
| 5x35 | 1.2 | 1.9 | 32.0 | 0.868 | 3.5 |
| 5x50 | 1.4 | 2.1 | 37.4 | 0.641 | 3.5 |
| 5x70 | 1.4 | 2.2 | 41.7 | 0.443 | 3.5 |
| 5x95 | 1.6 | 2.4 | 48.1 | 0.320 | 3.5 |
| 5x120 | 1.6 | 2.5 | 53.0 | 0.253 | 3.5 |
| 5x150 | 1.8 | 2.7 | 58.6 | 0.206 | 3.5 |
| 5x185 | 2.0 | 2.9 | 65.1 | 0.164 | 3.5 |
| 5x240 | 2.2 | 3.1 | 72.1 | 0.125 | 3.5 |
| 5x300 | 2.4 | 3.4 | 80.1 | 0.100 | 3.5 |
| 5x400 | 2.6 | 3.6 | 87.0 | 0.0778 |
3.5 |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: Do you custom package?
A: We strive to meet our customers' needs and therefore have no problem meeting most specifications. We can reel into coils, disposable cartons, special reels, or load your wire and cable into reusable plastic containers. Please check with your sales representative first to verify we can meet your need.
Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
